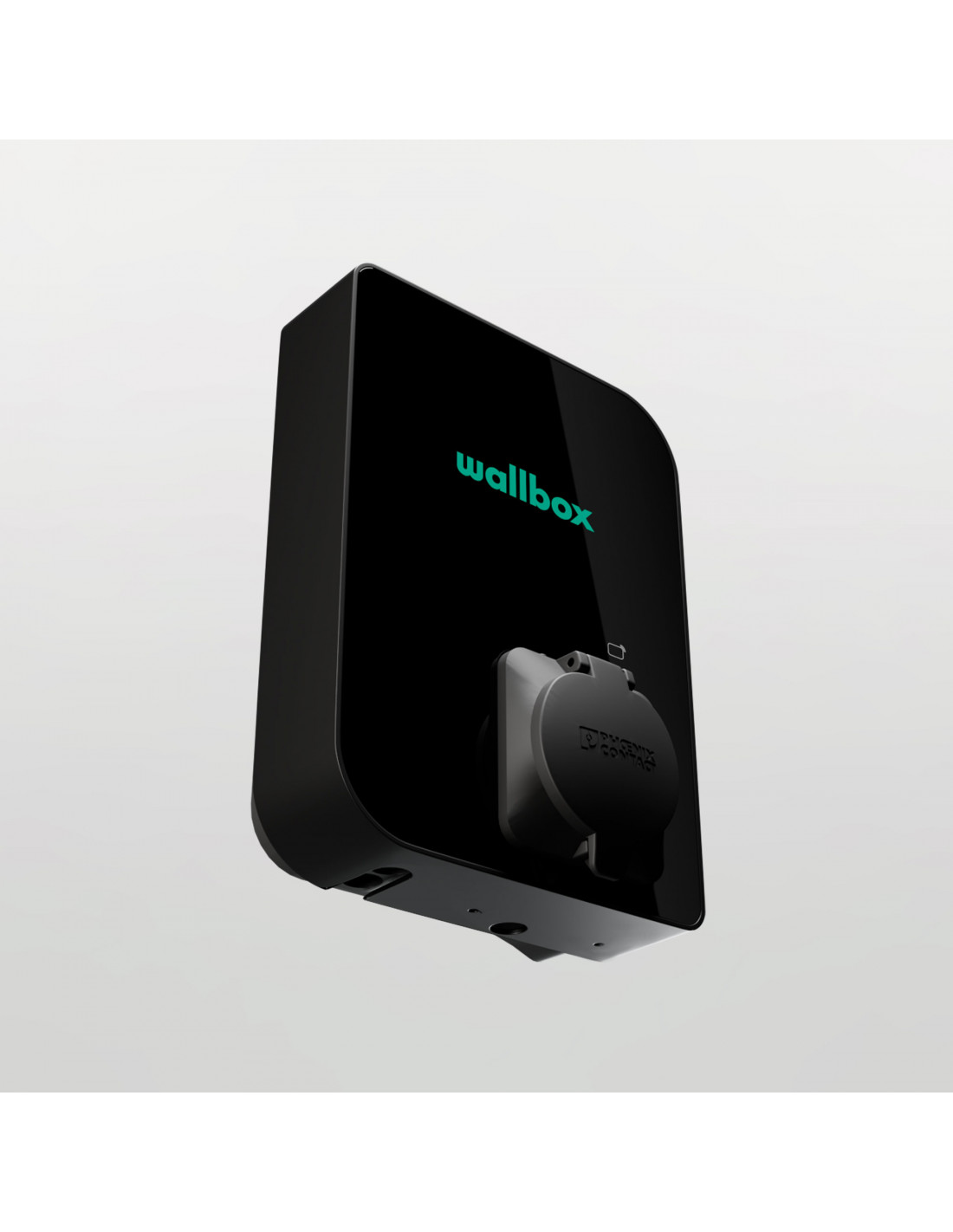

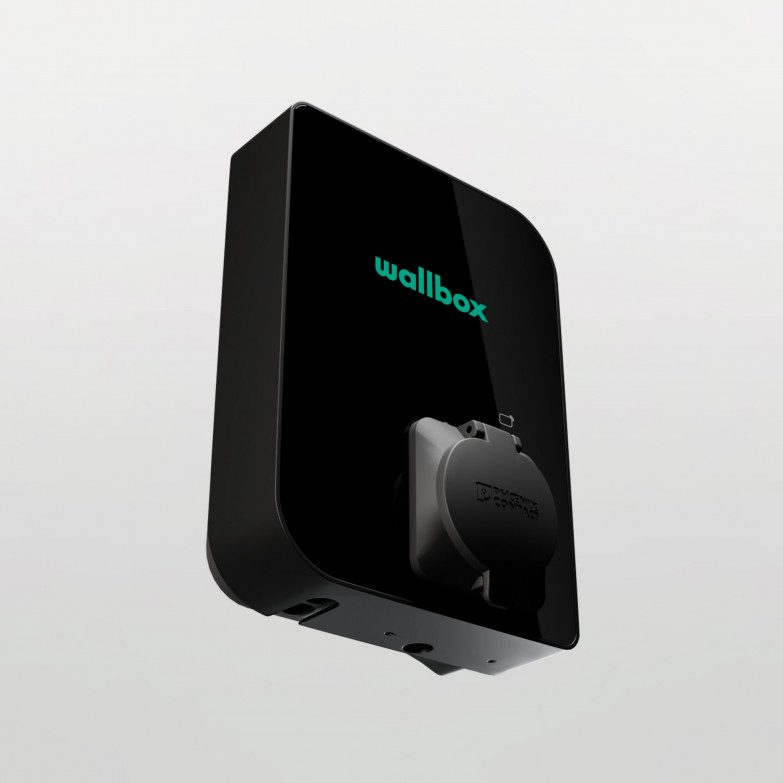

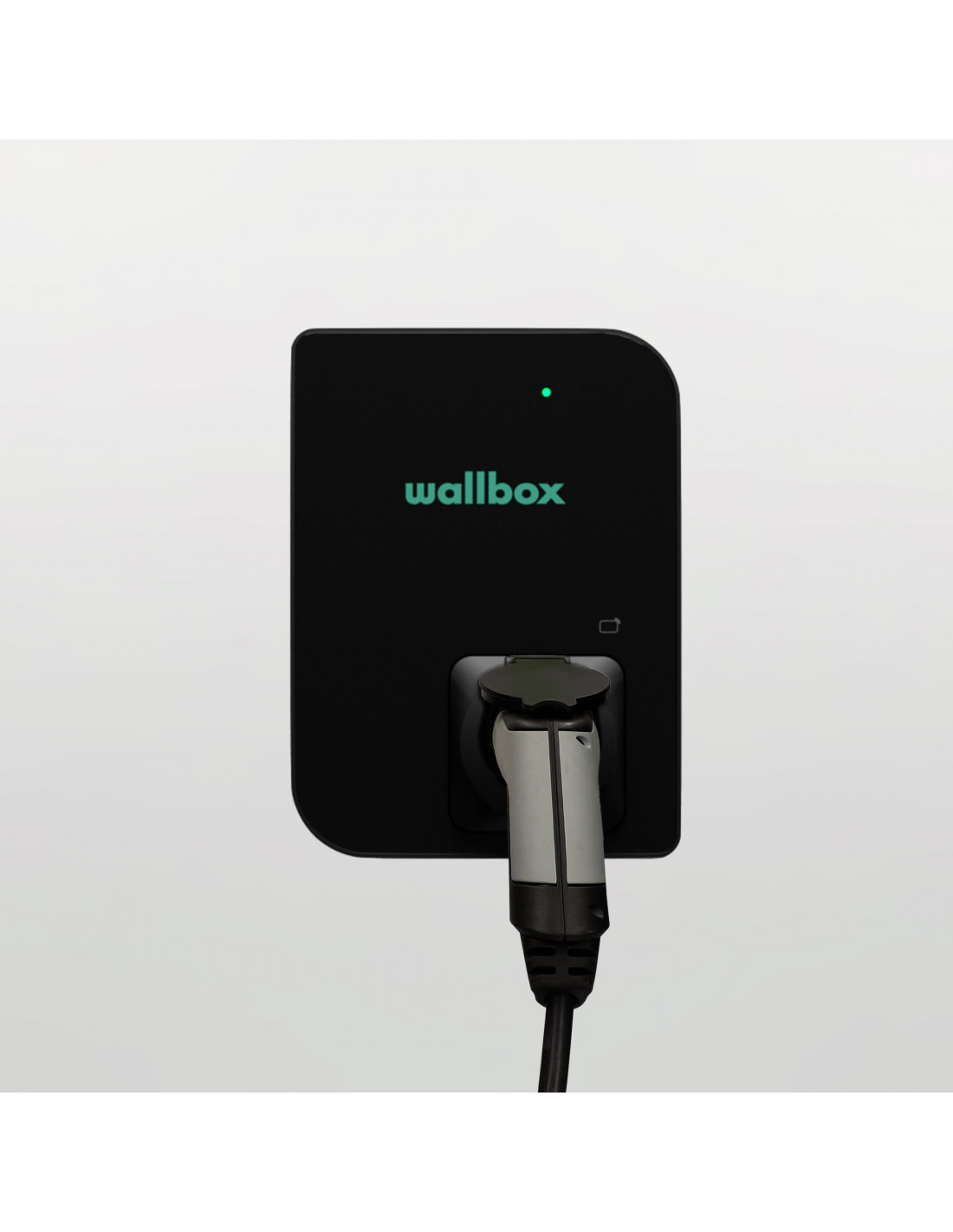

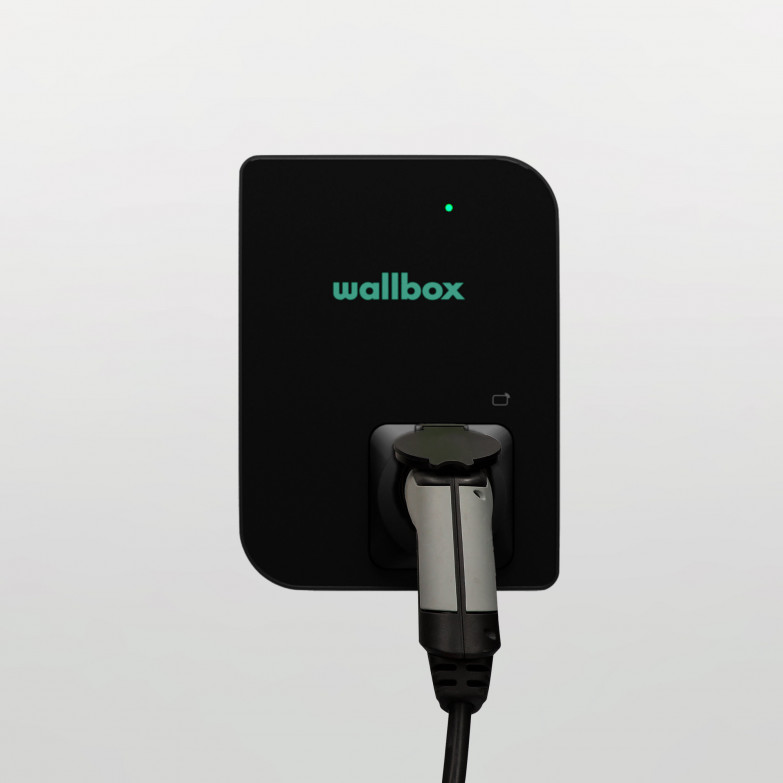

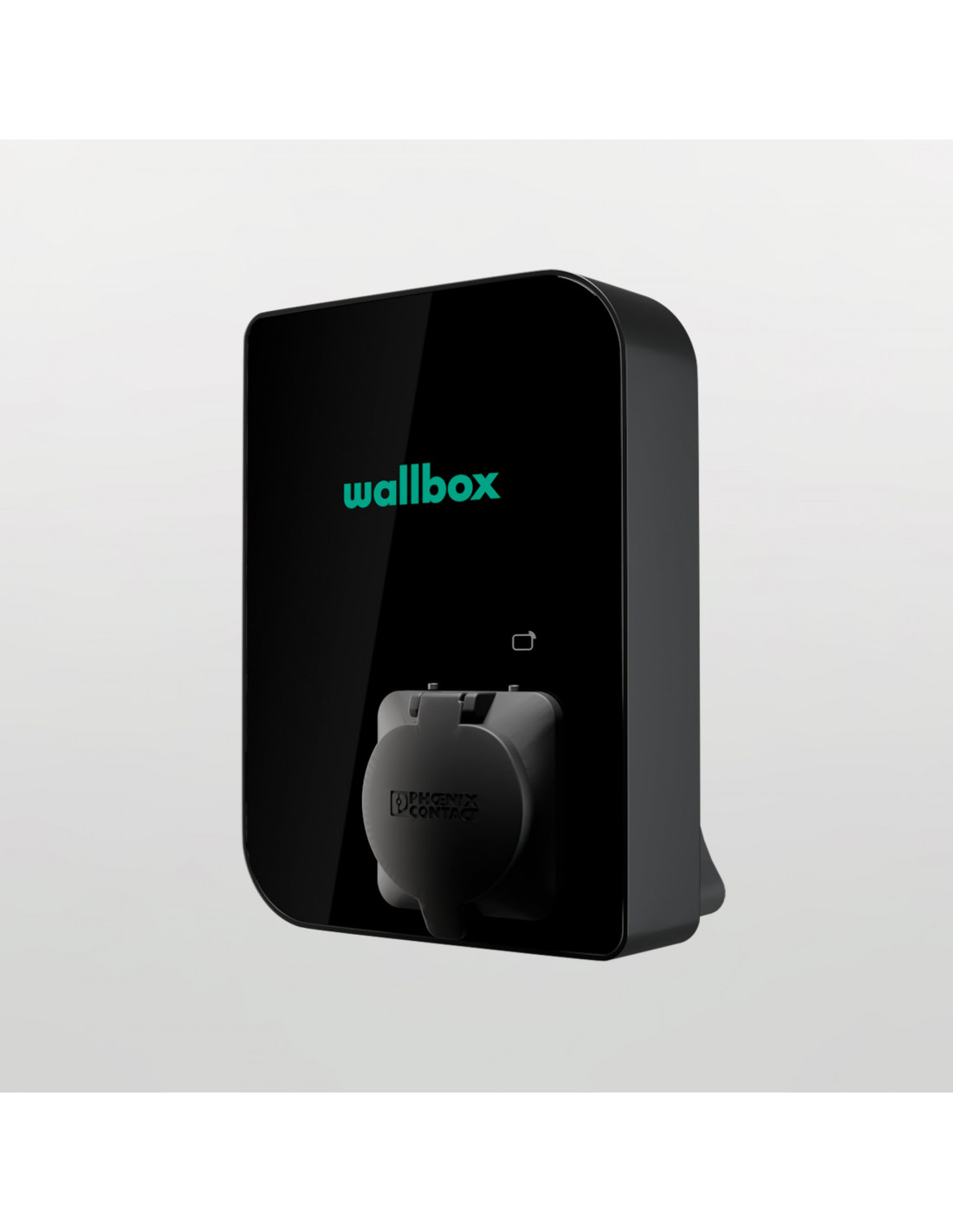

Charging power up to 22kW (3 Phase)
Compatible with all Type 1 and Type 2 electric cars
Technical information
Connector type: Socket
Maximum current: 32 A, 5x10 mm² cable
DC Leakage protection Included: Yes

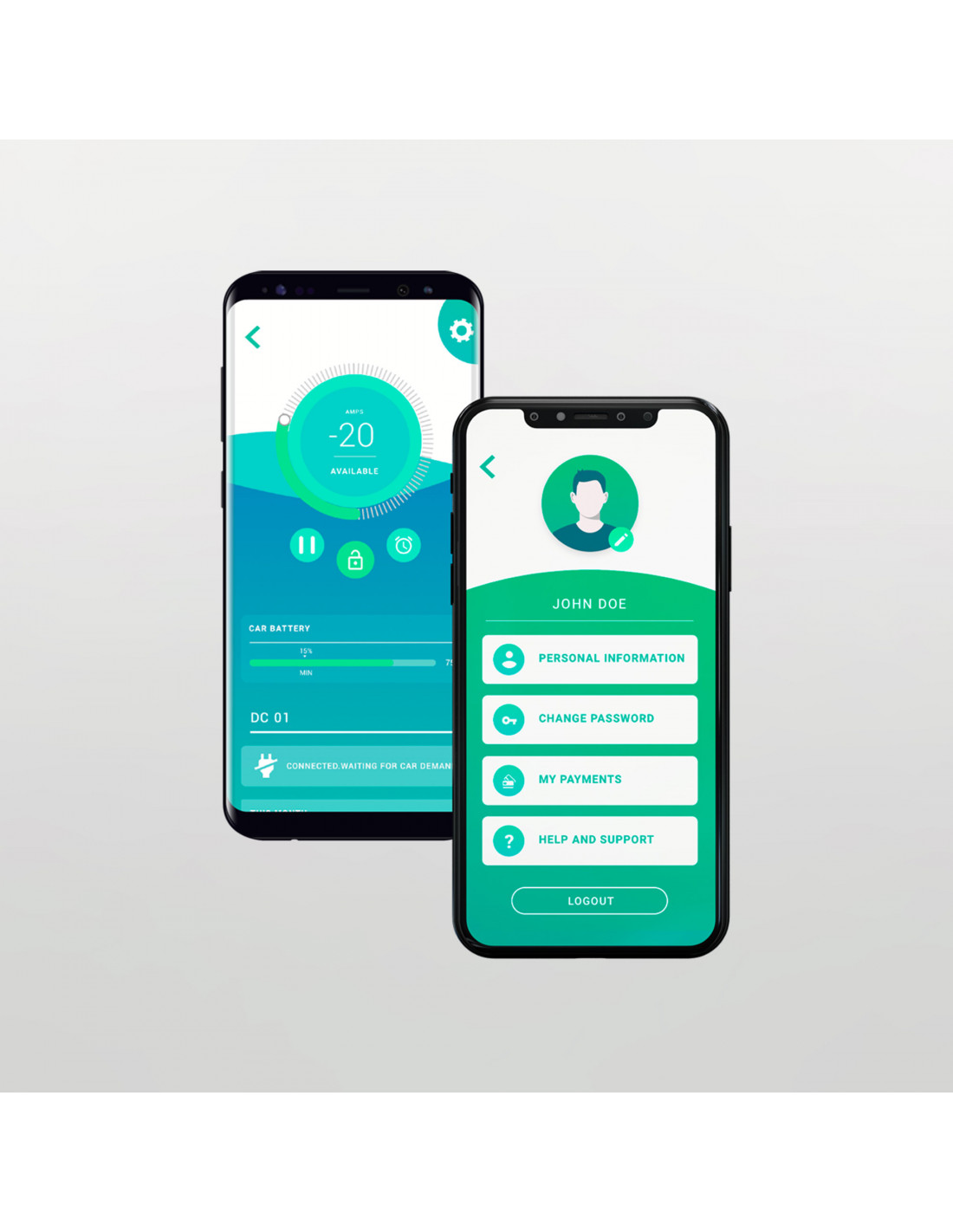

User interface: myWallbox Portal, Wallbox App
Overvoltage Category: CAT III
Storage temperature: From -40ºC to 70ºC
RCCB: Requires an external RCCB
Nominal frequency: 50 Hz / 60 Hz
Degree of protection: IP54 / IK08
Operating temperature From -25 ºC to 40 ºC
Input voltage: 110 / 230 V AC ± 10% (1P) / 400 V AC ± 10% (3P)
Included features: Power Sharing Smart

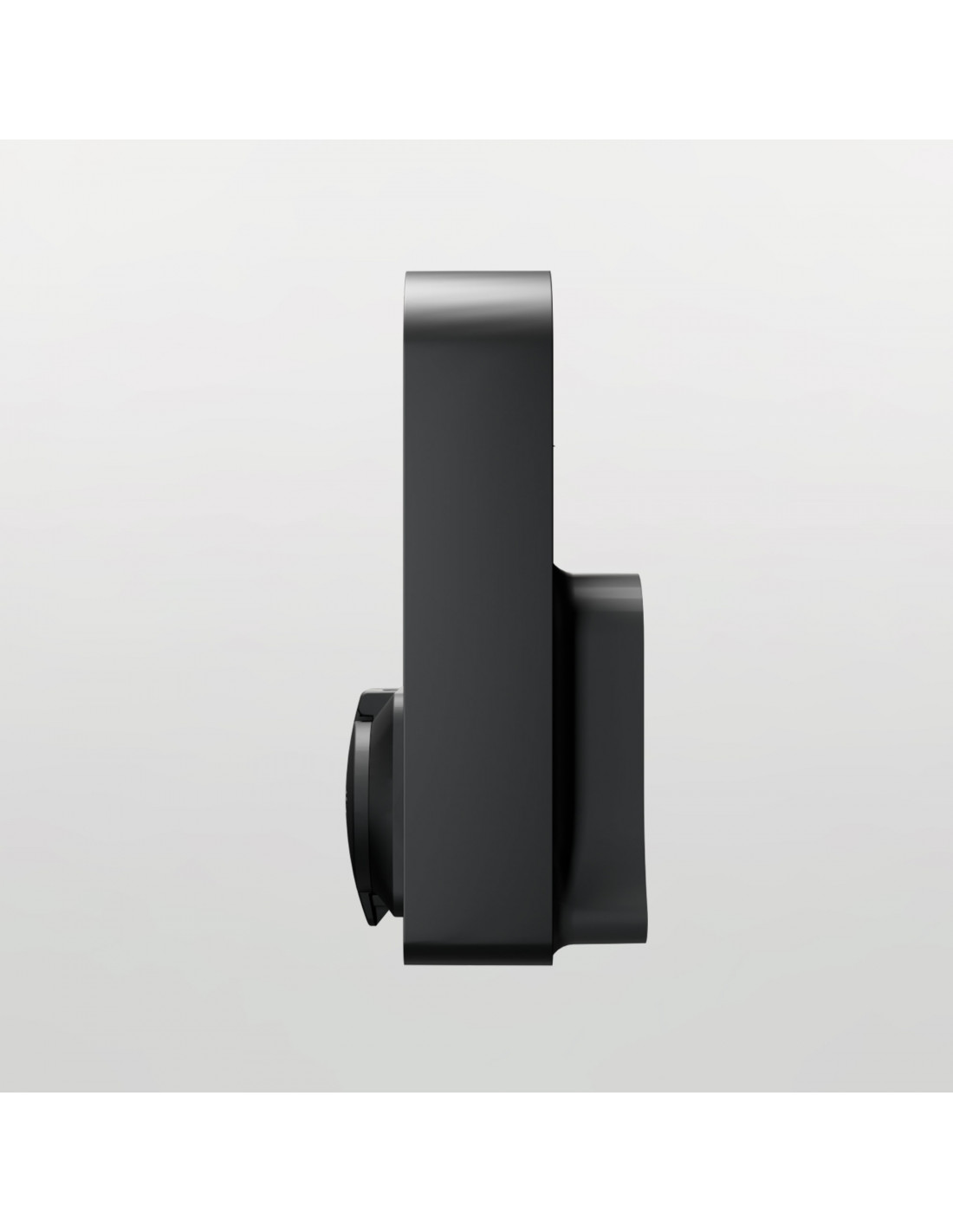

Dimensions: 260x192x113 mm
Charging power : 22kW
Charging mode Mode 3
Charger status information: Wallbox App, myWallbox Portal, RGB LED, Pantalla de 10.9 cm (4.3”)
Cable length: 5 m
Important note
If you are a Renault Zoe I (2015 edition) user, please keep in mind that this model is only compatible with this charger for single-phase charging (up to 7.4kW).
The Renault Zoe II (2018 edition), ordered after the 19th of March 2018, is perfectly compatible with this charger for both singe-phase and three-phase charging (up to 22kW).

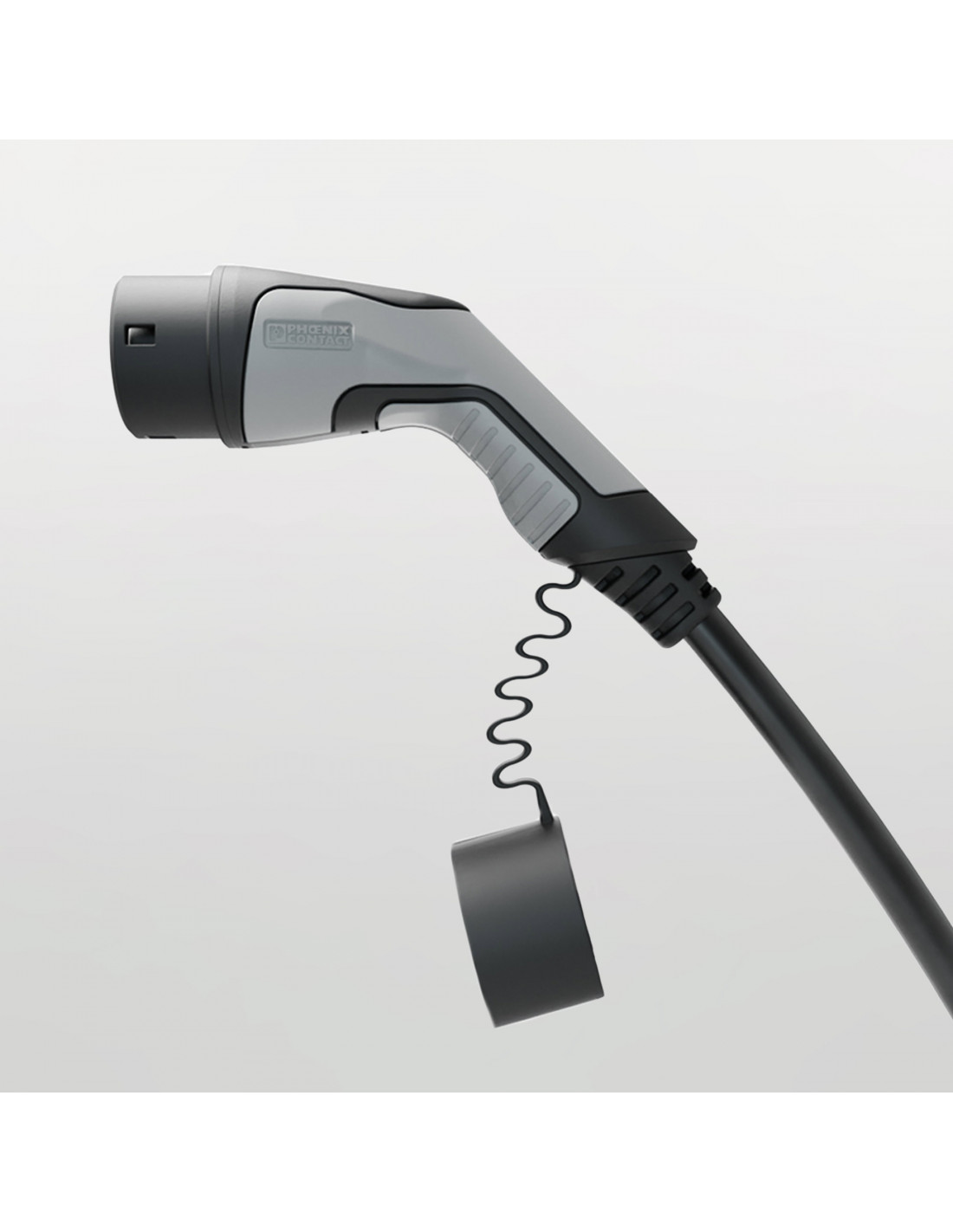

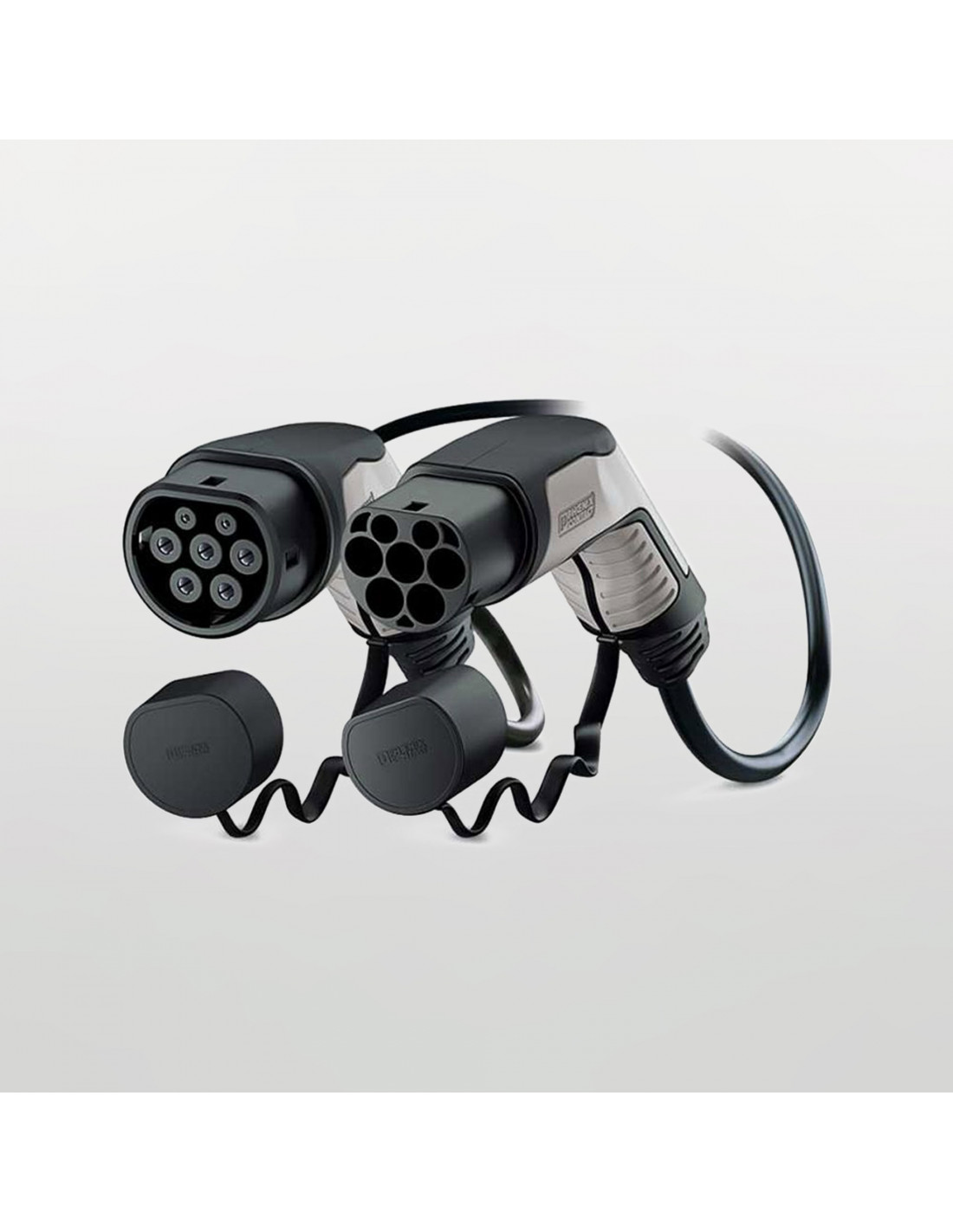

Charging cable with connector, 5 meters length, compatible with all electric cars and chargers with Type 2 connector.
- This charging cable is compatible with all electric cars and chargers with Type 2 connector
- Charging power up to 22 kW
- Cable length 5 m
- Charging cable Mode 3
- Single-phase and three-phase AC cable
- Includes covers for connectors
- Compatible with Copper SB, KSIX EVHome+ SC and all public applications with Type 2 socket
