Wallbox Pulsar EV Charger, 22kW, Type 2, 3-phase, 7m cable, App Included, with Power Sharing, Black

Pulsar Plus is the smallest but most powerful smart EV charger from Wallbox. With 7m power supply cable and three-phase charging with up to 22 kW of power. Connect to the myWallbox app via WiFi or Bluetooth to take advantage of all the smart charging features.

Compatible with your electric vehicle

Pulsar Plus is compatible with electric vehicles with type 2 charging plug.

Durability

Pulsar Plus, with IP54 and IK08 protection ratings, is water and dust resistant for safe indoor and outdoor installation.

Compact

Smaller than a toaster and lighter than a laptop.

Powerful

Charging capacity up to 22 kW.

Connected

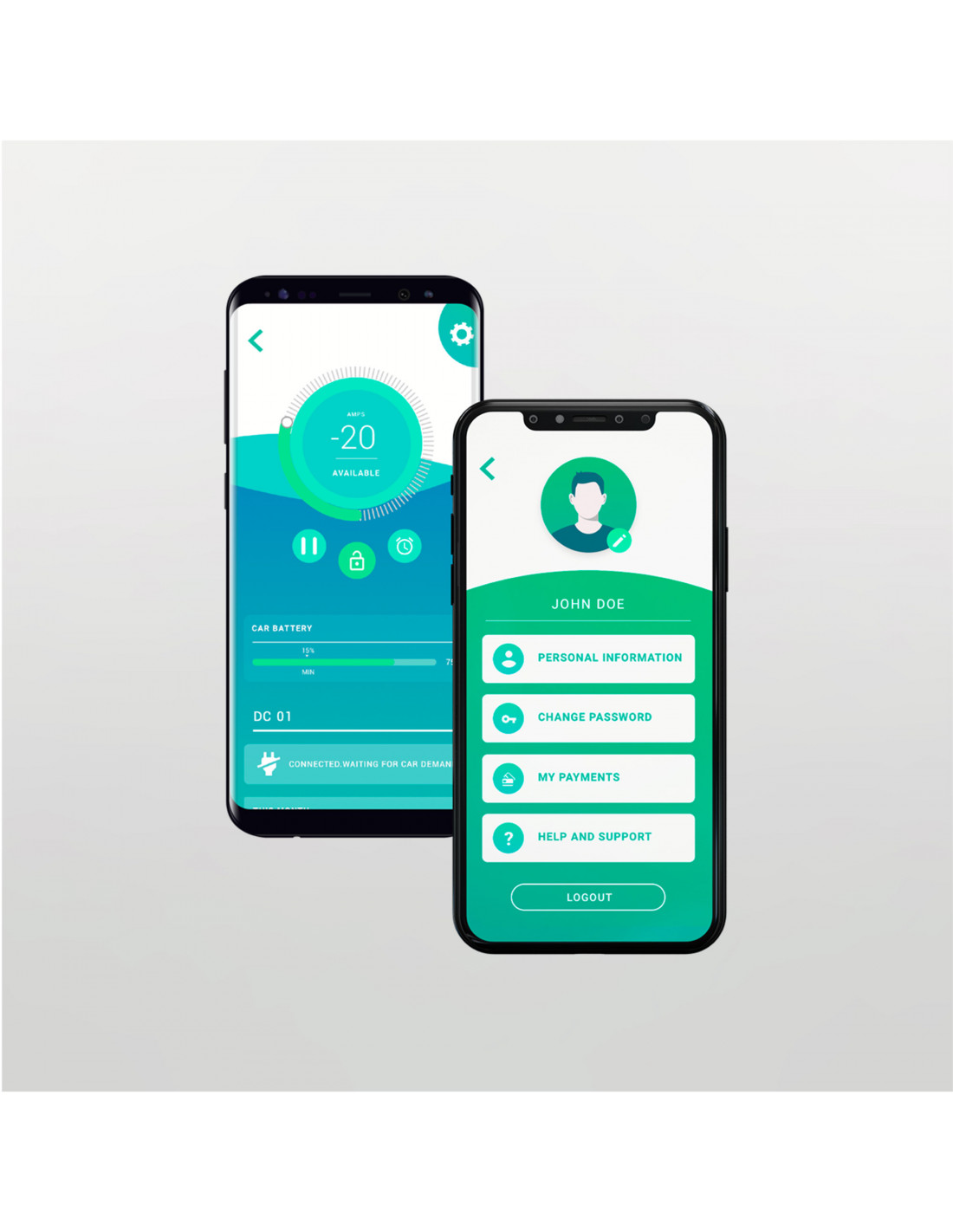

Connect Pulsar Plus to any smart device via wifi or Bluetooth and access the myWallbox app to control the charger with ease.

Controlled

Schedule charging sessions to take advantage of reduced off-peak rates, monitor charging status and enjoy many more benefits with the myWallbox app.

Integrated intelligence

Offline areas in your garage or parking spot are no longer a problem. Pulsar Plus incorporates Bluetooth to manage charging even if you can't connect to the network.

Enhance your Wallbox experience even further

Wallbox additionally offers you the smart charging function Power Boost, thanks to which you can measure energy usage in real time and automatically adjust the charging power to supply the optimum energy level according to the contracted power in the household, avoiding power outages or overcharges in your monthly electricity bill. Browse through our website and discover our kits including the power meter that activates this functionality, and much, much more.

Technical information

• Connector: Type 2
• Maximum current: 32 A, 5x10 mm² cable
• DC leakage detector included: Yes
• User interface: myWallbox Portal, Wallbox App
• Surge category: CAT III
• Storage temperature: -40°C to 70°C (-40°F to 158°F)
• RCCB: External RCCB required
• Rated frequency: 50 Hz / 60 Hz
• Degree of protection: IP54 / IK08
• Operating temperature: -25°C to 40°C (-25°F to 104°F)
• Input voltage: 110 / 230 V AC ± 10% (1P) / 400 V AC ± 10% (3P)
• Included features: Power Sharing Smart
• Dimensions: 166x163x82mm
• Maximum Power: 22 kW
• Charging Mode: Mode 3
• Charger status information: Halo RGB LED, Wallbox App, myWallbox Portal
• Cable length: 7m
• Colour: Black
